Ever wondered how your zero turn mower's electrical system stays organized? The answer lies in the wire harness. This crucial component bundles wires, ensuring smooth operation and safety. But what happens when the original harness is missing? In this post, you'll learn the importance of wire harnesses, challenges faced during rewiring, and how to tackle them effectively.
Zero turn mowers rely on several key electrical parts to operate smoothly:
Battery: Supplies power to the entire electrical system.
Ignition Switch: Controls power flow to start or stop the engine.
Starter Solenoid: Acts like a relay to activate the starter motor.
Safety Switches: Include seat, brake, and blade engagement switches. These prevent accidental startups or blade engagement.
Sensors: Monitor things like engine temperature or blade position to ensure safe operation.
Each component plays a vital role in the mower’s function. For example, the ignition switch sends power to the solenoid, which then engages the starter motor. Safety switches interrupt the circuit if conditions are unsafe, stopping the engine or blades instantly.
Wire harnesses bundle all these electrical wires into one organized unit. This helps:
Protect wires from damage caused by vibration, moisture, and heat.
Simplify installation by grouping wires according to function.
Prevent shorts and electrical noise by keeping wires neatly routed and separated.
Make maintenance easier by reducing tangled wires and clearly identifying circuits.
Without the original wire harness, rewiring means recreating this organized system manually. You’ll need to carefully route wires, secure connections, and ensure correct wire gauge for each circuit. Proper harness design reduces risks of shorts, failures, and electrical noise that can cause malfunctions.
Understanding these components and the wire harness’s role sets the foundation for successful rewiring. Knowing where power flows and how safety features integrate helps avoid mistakes during the rebuild.
Tip: When rewiring, label each wire by its function and destination; this makes troubleshooting and future repairs much easier.
To rewire a zero turn mower without the original wire harness, you’ll need the right tools to ensure clean, safe, and reliable connections. Here’s what you should have on hand:
Wire Strippers and Cutters: For removing insulation and cutting wires to length.
Crimping Tool: To securely attach terminals and connectors.
Soldering Iron and Solder: For solid, permanent electrical connections.
Heat Shrink Tubing: To insulate and protect soldered joints.
Electrical Tape: Additional insulation and securing wires.
Multimeter: To test voltage, continuity, and diagnose wiring issues.
Screwdrivers and Wrenches: For removing panels and securing wiring.
Zip Ties: To bundle and route wires neatly, preventing damage.
Wire Connectors and Terminals: Variety of spade, ring, and butt connectors for joining wires.
Having these tools ready will make the rewiring process smoother and safer.
Selecting the correct wire gauge is critical for safety and performance. Using wires too thin can cause overheating or voltage drops, while wires too thick may be difficult to route and unnecessarily costly.
12 to 14 Gauge: Use for high-current circuits like the starter motor, battery cables, and solenoid connections.
16 to 18 Gauge: Suitable for ignition switches, safety switches, and accessory circuits.
20 to 22 Gauge: Best for low-current signals such as sensors or indicator lights.
Check your mower’s wiring diagram or manual for specific recommendations. When in doubt, choose a slightly thicker wire to handle current safely. Also, use wires rated for outdoor use or automotive applications, as they resist heat, moisture, and abrasion better.
Working on electrical systems demands caution to prevent injury or damage. Follow these safety tips:
Disconnect the Battery First: Always remove the negative terminal before starting work to avoid shorts or shocks.
Wear Protective Gear: Insulated gloves and safety glasses protect against accidental sparks or sharp edges.
Work in Dry Conditions: Avoid moisture that can cause shorts or corrosion.
Use Proper Tools: Avoid makeshift tools that can damage wires or connectors.
Avoid Pinching or Crushing Wires: Route wires away from moving parts, sharp edges, or heat sources.
Label Wires: Mark each wire’s function and destination to avoid confusion during installation and future maintenance.
Double-Check Connections: Loose or incorrect wiring can cause shorts, blown fuses, or equipment failure.
Follow Manufacturer Guidelines: Refer to wiring diagrams and specifications whenever possible.
Taking these precautions helps ensure a safe and reliable rewiring job.
Tip: Use heat shrink tubing over soldered joints instead of just electrical tape; it provides better insulation and lasting protection against moisture and vibration.
Start by tracing the wiring layout on your mower. Even if the original harness is gone, look for leftover wires, connectors, or terminals. Use a notebook or a digital tool to sketch a wiring diagram. Mark each component: battery, ignition switch, solenoid, safety switches, and accessories. This map helps you understand how power flows and where wires connect. Label wires as you go to avoid confusion later.
Next, carefully remove all damaged wires. Use wire cutters to snip wires close to connectors or terminals. Avoid pulling on wires harshly; you don’t want to harm components. Keep track of where each wire was connected by labeling or taking photos. Clean connectors and terminals if corroded, using a wire brush or contact cleaner.
Choose replacement wires by matching the correct gauge to each circuit's current load. For high-current parts like the starter, use 12 or 14 gauge wire. For ignition and safety switches, 16 or 18 gauge works well. For low-current accessories, 20 or 22 gauge is enough. Pick wires rated for outdoor or automotive use to resist heat, moisture, and abrasion. Use color-coded wires if possible to keep circuits easy to identify.
Begin wiring by connecting the battery’s positive terminal to the ignition switch with a red wire. From the ignition switch, run a wire to the starter solenoid’s positive terminal. This setup lets the ignition switch control the solenoid, which then activates the starter motor. Ground the solenoid correctly to the mower frame or battery negative terminal. Use proper connectors and secure all joints by soldering or crimping, then protect with heat shrink tubing.
Safety switches prevent accidents by stopping the engine if unsafe conditions occur. Wire the seat switch, brake switch, and blade engagement switch in series between the ignition switch and starter solenoid. This means all switches must be “closed” (safe) to allow power flow. If any switch opens, the circuit breaks and the mower won’t start. Use the wiring map to place these switches correctly. Secure connectors and test each switch with a multimeter for continuity.
If your mower has accessories like headlights or gauges, wire these separately from the main starter circuit. Connect them to the battery’s positive terminal through a fuse to protect against overloads. Add switches to control these accessories as needed. Route accessory wires away from heat and moving parts. Bundle wires neatly with zip ties to prevent damage and electrical noise.
Tip: Always label each wire during removal and installation; this practice simplifies troubleshooting and future repairs significantly.
After rewiring your zero turn mower, testing is crucial to confirm everything works correctly and safely. This step helps catch wiring mistakes or faulty connections before you use the mower in the field.
A multimeter is your best friend for electrical testing. Use it to:
Check Voltage: Verify battery voltage reaches key points like the ignition switch, solenoid, and safety switches. This confirms power flow.
Test Continuity: Ensure wires and switches create a complete circuit when engaged. For example, test seat and brake switches by checking if the circuit closes when activated.
Detect Shorts: Measure resistance to find unintended connections or breaks. A low resistance where none should be indicates a short circuit.
Always test wires individually before powering the system. Disconnect the battery while testing continuity or resistance to avoid damage to your meter.
Safety switches prevent accidents by stopping the engine if unsafe conditions occur. After rewiring, test each switch:
Seat Switch: Sit on the seat and check if the circuit closes. Stand up and confirm it opens.
Brake Switch: Engage the brake pedal and test for circuit continuity. Release the brake and check for an open circuit.
Blade Engagement Switch (PTO): Turn the blade control on and off, verifying the switch opens and closes the circuit accordingly.
If any switch fails, the mower may start unexpectedly or not start at all. Fix or replace faulty switches before operating the mower.
Before full use, test the mower in a safe, controlled space:
Keep blades disengaged.
Start the mower and observe if it runs smoothly.
Test all controls, including ignition, brake, and blade engagement.
Check for unusual noises, sparks, or smells indicating wiring issues.
Monitor if safety switches stop the engine or starter as designed.
Controlled testing reduces injury risk and protects your mower from damage caused by wiring faults.
Tip: Use your multimeter to verify each safety switch’s operation under real conditions before starting the mower to ensure your rewiring job is both safe and effective.
Rewiring a zero turn mower without the original wire harness can bring several challenges. Understanding these common issues and their fixes helps ensure a safe, reliable electrical system.
Electrical noise causes interference that can disrupt sensors, switches, or the ignition system. It often shows as erratic behavior or false signals.
To reduce noise:
Separate Power and Signal Wires: Keep high-current wires (starter, battery cables) away from low-current sensor or switch wires.
Use Shielded Cables: For sensitive circuits, shielded wires block external interference.
Add Ferrite Beads: Clip-on ferrite beads absorb high-frequency noise on wires.
Secure Wiring: Loose or vibrating wires can generate noise. Use zip ties to hold wires firmly.
Avoid Ground Loops: Ensure a single, solid ground point to prevent noise caused by multiple grounding paths.
Short circuits happen when wires touch each other or grounded metal unintentionally. They cause blown fuses, melted wires, or no power flow.
To prevent or fix shorts:
Inspect Wire Insulation: Check for cracks, cuts, or worn spots exposing bare wire.
Use Heat Shrink Tubing: Cover soldered or crimped joints to insulate and protect.
Avoid Pinched Wires: Route wires away from moving parts or sharp edges.
Check Connectors: Loose or corroded connectors can cause shorts. Clean or replace as needed.
Test Continuity: Use a multimeter to find unexpected connections between wires or to ground.
When problems arise, systematic troubleshooting helps find the root cause:
Start with Visual Inspection: Look for obvious damage or loose connections.
Use a Multimeter: Check voltage levels, continuity, and resistance on circuits.
Test One Circuit at a Time: Isolate parts of the wiring to narrow down issues.
Check Safety Switches: Faulty or miswired switches can prevent starting or cause shutdowns.
Consult Wiring Diagrams: Even a generic diagram helps verify correct wire routing.
Replace Suspect Components: Sometimes switches, solenoids, or connectors fail and need replacement.
Tip: Label wires and document your wiring layout during installation; this practice makes troubleshooting faster and reduces errors in complex rewiring projects.
When rewiring a zero turn mower without the original wire harness, following best practices ensures your work lasts and stays safe. Proper techniques help avoid frequent repairs and electrical issues.
Choose connectors made for outdoor or automotive use. They resist moisture, corrosion, and vibration better than cheap alternatives. Look for:
Sealed connectors: Keep water and dirt out.
Gold-plated or tin-plated terminals: Reduce corrosion and improve conductivity.
Locking mechanisms: Prevent connectors from loosening due to vibration.
Avoid twisting wires together or using simple electrical tape alone. Instead, use crimp connectors or solder joints covered by heat shrink tubing. This creates strong, durable connections that won’t fail easily.
How you route wires affects their longevity and mower safety. Consider these tips:
Keep wires away from heat sources: Avoid engine parts or exhaust areas that get hot.
Avoid moving parts: Prevent wires from rubbing on belts, blades, or steering components.
Use zip ties or cable clamps: Secure wires firmly to prevent vibration damage.
Bundle wires by function: Group ignition, starter, and accessory wires separately to reduce electrical noise.
Leave some slack: Don’t stretch wires tight; allow movement without pulling.
Proper routing prevents wire insulation from wearing out or breaking, reducing shorts or open circuits.
Even the best wiring needs periodic checks:
Look for damaged insulation: Cracks or cuts expose wires to moisture and shorts.
Check connectors: Ensure they’re tight and corrosion-free.
Test safety switches: Verify they operate correctly to maintain mower safety.
Clean terminals: Remove dirt or oxidation to maintain good electrical contact.
Replace worn wires: Swap any wire showing signs of wear before failure.
Schedule inspections at least once a mowing season or after heavy use. Early detection prevents bigger problems down the line.
Tip: Apply dielectric grease on connectors to repel moisture and prevent corrosion, boosting long-term wiring reliability on your zero turn mower.
When you don't have the original wire harness, rewiring a zero turn mower can be tricky. Luckily, some alternatives can save time, effort, and ensure safety.

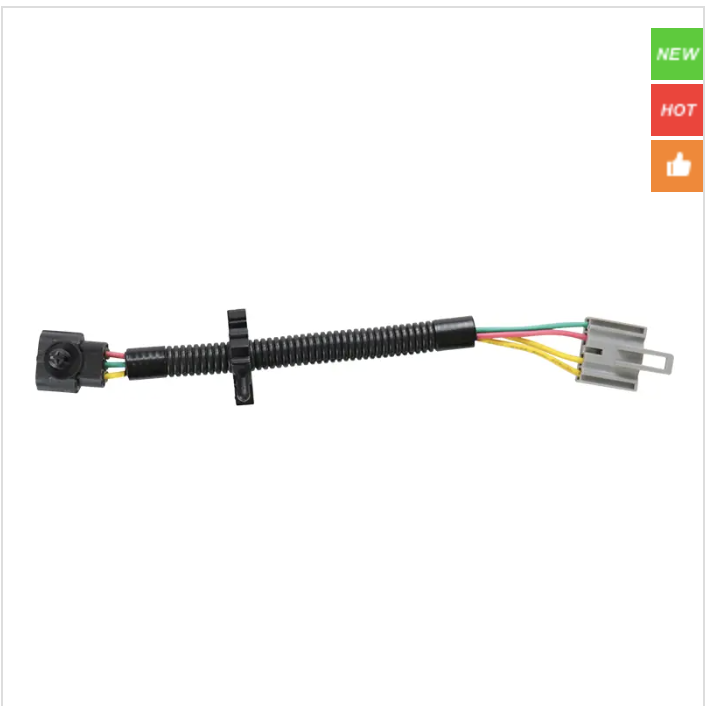

Universal wire harnesses come pre-assembled and designed to fit multiple mower models. They usually include:
Standard connectors for common components like ignition switches, solenoids, and safety switches.
Color-coded wires to simplify installation.
Protective sleeves to guard against heat and moisture.
Using a universal harness can speed up the rewiring process and reduce wiring errors. However, you may need to modify connectors or trim wires to fit your mower’s specific layout.
If rewiring seems overwhelming, consider hiring a professional. Experts have:
Experience with various mower models and wiring systems.
Proper tools and diagnostic equipment.
Knowledge to ensure the rewiring meets safety standards.
Professional services can guarantee reliable performance and may come with a warranty. This option saves time and reduces the risk of wiring mistakes that could damage your mower or cause safety hazards.
Original Equipment Manufacturer (OEM) wire harnesses are designed specifically for your mower model. Benefits include:
Perfect fit and compatibility.
Preserved factory wiring standards.
Maintained safety features and functionality.
OEM parts tend to be more expensive and might take longer to source. But they offer the highest reliability and are often recommended for long-term use.
Tip: When choosing an alternative, balance cost, time, and safety; investing in quality harnesses or professional help can prevent costly repairs later.
Rewiring a zero turn mower without the original harness involves understanding key electrical components and using the right tools. Ensuring proper wire gauge selection and following safety precautions restores functionality effectively. Future upgrades can benefit from organized wire harness components, enhancing performance and reliability. For high-quality solutions, consider products from Shandong Qianyu Construction Machinery Co., LTD., known for their durable and efficient equipment, offering significant value to your maintenance and repair needs.
A: A wiring harness bundles and organizes electrical wires, protecting them from damage and simplifying installation and maintenance.
A: Rewire by mapping the system, selecting correct wire gauges, and connecting components manually, ensuring secure and insulated connections.
A: Correct wire gauge prevents overheating and voltage drops, ensuring safe and efficient electrical flow in the mower's circuits.
A: Universal harnesses simplify installation with pre-assembled, color-coded wires, reducing errors and saving time.
A: Costs vary based on complexity and location, but investing in professional services ensures safety and reliability, potentially saving on future repairs.
