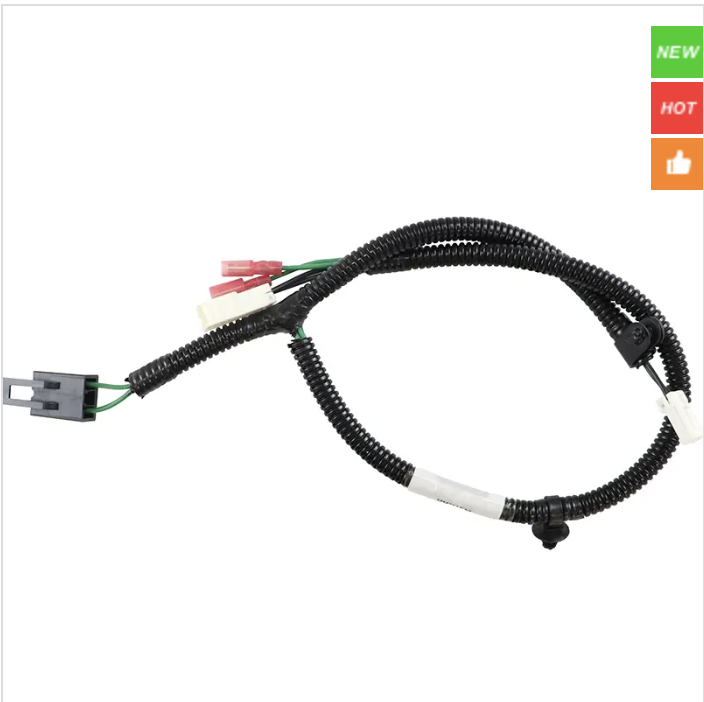

Have you ever wondered what keeps your car's electrical systems running smoothly? Meet the car wiring harness. It's the backbone of your vehicle's electrical network, ensuring everything from headlights to radios function seamlessly. But what happens when it malfunctions? In this post, you'll learn about the importance of a wiring harness, common issues that arise, and how to address them effectively.
When faced with a damaged car wiring harness, the first question is whether it can be repaired. The answer depends on several factors including the extent of the damage and the location of the faults.

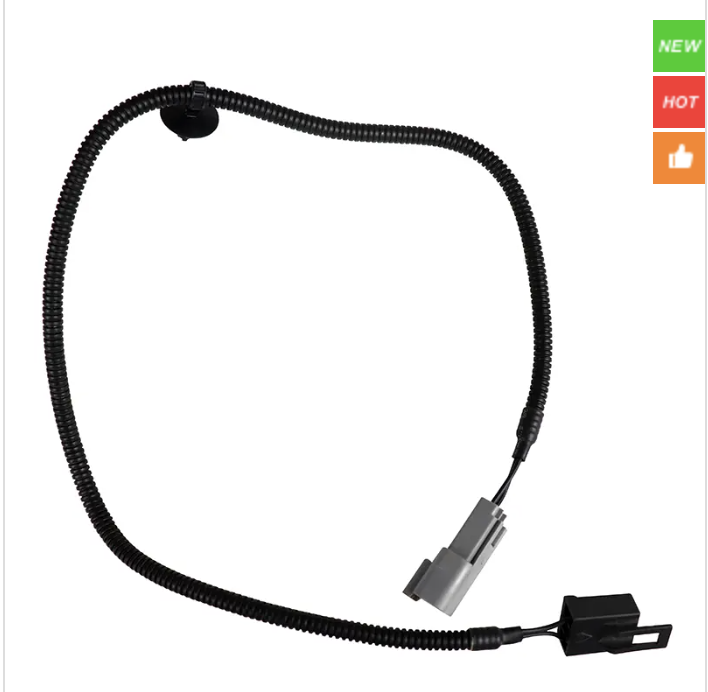

Repairs are generally feasible when damage is localized to a few wires or connectors. For example, if rodents have chewed through a section or if a connector has corroded, repairing those specific parts can restore function without replacing the entire harness. Minor abrasions or broken insulation can also be fixed by splicing in new wire sections or applying protective sleeves.
However, if the harness shows widespread wear, multiple broken wires, or severe corrosion, a repair might not be reliable or safe. In such cases, replacement is often the better choice to avoid future electrical failures.
Localized Damage: A small section of wires or connectors is visibly damaged.
Functional Testing: Some circuits still work, indicating the problem is limited.
No Structural Damage: The harness's main protective covering remains intact.
Accessible Damage: The damaged area can be reached without dismantling large parts of the vehicle.
If these signs are present, repairing the harness can be a practical and cost-effective solution.
Complexity: Modern vehicles have intricate wiring systems, making repairs tricky.
Reliability: Repairs may not restore original durability, risking intermittent faults.
Safety: Poorly repaired wires can cause shorts, leading to fires or component damage.
Time-Consuming: Identifying and fixing all faults requires patience and skill.
Because of these limitations, repairs should be done carefully, using proper tools and materials, or left to professionals if unsure.
Tip: Always test repaired wiring sections with a multimeter to ensure continuity and avoid hidden faults before reassembling the vehicle.
Repairing a car wiring harness takes careful attention and the right approach. Here’s how to do it step-by-step.
Before starting, gather all tools and materials you’ll need:
Wire strippers: To remove insulation cleanly.
Crimping tool: For securing connectors.
Soldering iron and solder: For strong, permanent wire joints.
Heat shrink tubing: To insulate and protect connections.
Electrical tape: For extra insulation and bundling wires.
Multimeter: To test continuity and voltage.
Replacement wires and connectors: Match the gauge and type of the original wiring.
Having these on hand ensures you can work efficiently and safely.
Next, locate the damaged parts of the harness:
Visually inspect for burnt, frayed, or broken wires.
Look for corroded or loose connectors.
Use a multimeter to test continuity along wires.
Wiggle connectors and wires while testing to find intermittent faults.
Mark damaged wires clearly, so you know exactly where repairs are needed. It helps to disconnect the harness from the battery before working to avoid shorts or shocks.
Once damage is identified, use these techniques:
Cut out damaged wire: Remove the faulty section completely.
Strip insulation: About ½ inch on both ends of the wire.
Twist wires together: For a quick splice, but soldering is preferred.
Solder wires: Heat the wires and apply solder for a solid connection.
Slide heat shrink tubing over joint: Before soldering, then shrink it with heat after.
Crimp connectors: Use for joining wires if soldering isn’t possible.
Replace connectors: If corroded or broken, install new ones matching OEM specs.
Bundle repaired wires: Use electrical tape or wire loom to protect and organize.
Always test each repaired section with a multimeter for continuity and resistance before reassembly.
Tip: When soldering, avoid cold joints by heating both wires evenly and applying solder smoothly for a reliable, durable connection.
When repairing a car wiring harness, having the right tools and materials is crucial for a successful and safe job. These tools help you work precisely, avoid damage, and ensure a durable repair.
Wire Strippers: These remove insulation cleanly without damaging the wire strands, making it easier to connect wires.
Crimping Tool: Used to attach connectors securely to wires. Proper crimping ensures good electrical contact.
Soldering Iron and Solder: Soldering creates strong, permanent joints between wires, enhancing conductivity and durability.
Heat Shrink Tubing: Provides insulation and protection to soldered or crimped joints. It shrinks tightly when heated, sealing connections.
Electrical Tape: Offers additional insulation and helps bundle wires neatly.
Multimeter: Essential for testing continuity, voltage, and resistance to verify wiring integrity during and after repair.
Wire Cutters: For cutting wires cleanly to length.
Connector Removal Tools: Helpful for safely disconnecting connectors without damage.
Replacement Wires: Choose wires matching the original gauge and insulation type to handle the electrical load safely.
Connectors and Terminals: Use OEM or high-quality connectors designed for automotive use to prevent corrosion and ensure a secure fit.
Solder: Use rosin-core solder suitable for electrical work.
Heat Shrink Tubing: Available in various sizes; select tubing that fits snugly over wire joints.
Protective Sleeving or Loom: Optional but recommended to bundle and protect repaired sections from abrasion and heat.
Automotive Parts Stores: Most carry wiring repair kits, connectors, and basic tools.
Electronics Supply Shops: Good for soldering equipment, heat shrink tubing, and specialty wires.
Online Retailers: Offer wide selections of automotive wiring tools and materials, often with detailed specifications.
Hardware Stores: May stock general electrical tape, wire cutters, and some connectors.
Specialty Automotive Repair Suppliers: Provide OEM-grade parts and professional tools.
Investing in quality tools and materials is important. Cheap or incorrect items can cause poor connections, leading to electrical faults or safety hazards.
Tip: Always match replacement wire gauge and insulation type to the original wiring to maintain electrical safety and system reliability.
Repairing a car wiring harness involves working with electrical components that can pose risks if proper precautions aren’t taken. Safety should always be your top priority to prevent injury, damage, or accidents.
Before starting any repair work, wear appropriate safety gear:
Insulated gloves: Protect your hands from electrical shock and sharp wire ends.
Safety goggles: Shield your eyes from sparks, debris, or accidental solder splashes.
Protective clothing: Long sleeves and pants help guard against burns or cuts.
Using these items reduces the risk of injury during wire stripping, soldering, or testing.
Electrical hazards can be dangerous, but you can minimize them by following these steps:
Disconnect the battery: Always remove the negative battery terminal first to cut power before working on the harness.
Use insulated tools: Choose tools designed for electrical work to avoid accidental shorts or shocks.
Work in a dry environment: Moisture increases the risk of electrical shock, so keep your workspace dry.
Test circuits before touching: Use a multimeter to confirm no live voltage is present in wires or connectors.
Avoid loose connections: Secure all wiring firmly to prevent sparks or shorts from vibrations during vehicle operation.
Creating a safe workspace helps prevent accidents and ensures efficient repair:
Clear the area: Remove clutter and flammable materials from your work zone.
Good lighting: Bright, focused light helps you see small wires and connections clearly.
Ventilation: When soldering, ensure proper airflow to avoid inhaling fumes.
Organize tools and parts: Keep everything within reach to avoid unnecessary movements that could cause accidents.
Follow manufacturer guidelines: Refer to the vehicle’s service manual for specific safety instructions related to the wiring system.
By maintaining a clean, well-lit, and ventilated workspace, you reduce the chance of mistakes or injury.
Tip: Always disconnect the vehicle’s battery before starting any wiring repair to eliminate the risk of electrical shock or short circuits.
Deciding whether to repair or replace a car wiring harness depends on several key factors. Understanding these will help you make a safe, cost-effective choice.
Extensive Damage: If the harness has widespread corrosion, multiple broken wires, or melted insulation, replacement is often the safest option.
Repeated Failures: When repairs fail repeatedly or faults return shortly after fixing, the harness may be compromised beyond repair.
Severe Environmental Exposure: Exposure to water, chemicals, or extreme heat can degrade the harness beyond fixable limits.
Safety Concerns: If the wiring damage risks causing shorts, fires, or component damage, replacement ensures safety.
Inaccessibility: If damaged sections are buried deep in the vehicle and difficult to reach, replacement may save labor time and cost.
Repair Costs: Repairing minor damage typically costs less upfront but can add up if multiple repairs are needed.
Replacement Costs: New harnesses vary in price depending on vehicle make and model, sometimes higher initially but more reliable long-term.
Labor: Labor for replacement can be intensive, especially in modern vehicles, but may save time compared to chasing intermittent faults.
Value: A new harness restores original reliability, reducing future repair costs and downtime.
Improved Reliability: New harnesses reduce risk of electrical faults and intermittent issues.
Enhanced Safety: New wiring meets current standards and eliminates hidden damage risks.
Better Vehicle Performance: Proper wiring ensures all electrical systems function optimally.
Peace of Mind: Knowing the harness is new avoids uncertainty about potential hidden faults.
Warranty: Many new harnesses come with warranties, offering added protection.
Replacing a wiring harness is a significant decision. Evaluate the damage extent, repair history, and your vehicle’s needs carefully. When in doubt, consult a professional to assess whether replacement is the best course.
Tip: When replacing a wiring harness, always use OEM or high-quality aftermarket parts to ensure compatibility and long-term reliability.
Deciding between professional repair and doing it yourself (DIY) for a car wiring harness depends on several factors. Both options have their advantages and drawbacks, so understanding them helps you make the best choice for your situation.
Pros:
Expertise and Experience: Professionals have the training and tools to diagnose and fix wiring issues accurately.
Quality Assurance: Repairs come with warranties or guarantees, providing peace of mind.
Safety: They follow safety standards, reducing risks of electrical faults or fire.
Time-Saving: Professionals can complete repairs faster, especially on complex wiring systems.
Cons:
Cost: Professional repairs can be expensive, particularly if the harness is difficult to access.
Scheduling: You may need to wait for an appointment or service slot.
Less Control: You rely on someone else’s judgment and work quality.
Benefits:
Cost-Effective: DIY repairs save labor costs, making minor fixes affordable.
Learning Opportunity: You gain hands-on experience and understanding of your vehicle’s electrical system.
Convenience: You can work on your own schedule without waiting.
Immediate Action: Quick fixes can be done without delay, avoiding downtime.
However, DIY also has challenges:
Skill Requirement: Wiring repairs need precision and knowledge to avoid mistakes.
Risk of Damage: Incorrect repairs can cause further issues or safety hazards.
Tool Investment: You’ll need proper tools and materials, which might be costly initially.
Complexity of Damage: Extensive or hidden wiring faults are better handled by professionals.
Your Skill Level: If you have electrical repair experience, DIY might be feasible; otherwise, professional help is safer.
Tools and Equipment: Ensure you have the right tools for accurate and safe repairs.
Time Availability: Consider how much time you can dedicate to the repair.
Safety Concerns: If the repair involves critical systems (e.g., airbags, engine control), professional service is recommended.
Warranty and Insurance: Professional repairs might be required to maintain vehicle warranty or insurance coverage.
Tip: For DIY repairs, always consult your vehicle’s wiring diagram and test each repair with a multimeter to ensure proper function before reassembling.
Repairing a car wiring harness depends on damage extent and location. Minor issues can be fixed, but severe damage may require replacement. Proper maintenance and careful repair can extend the harness's lifespan. Opting for professional help ensures safety and reliability, while DIY offers cost savings. For quality and reliable parts, consider Shandong Qianyu Construction Machinery Co., LTD.. Their products are designed to provide exceptional value and durability, ensuring your vehicle's electrical system operates flawlessly.

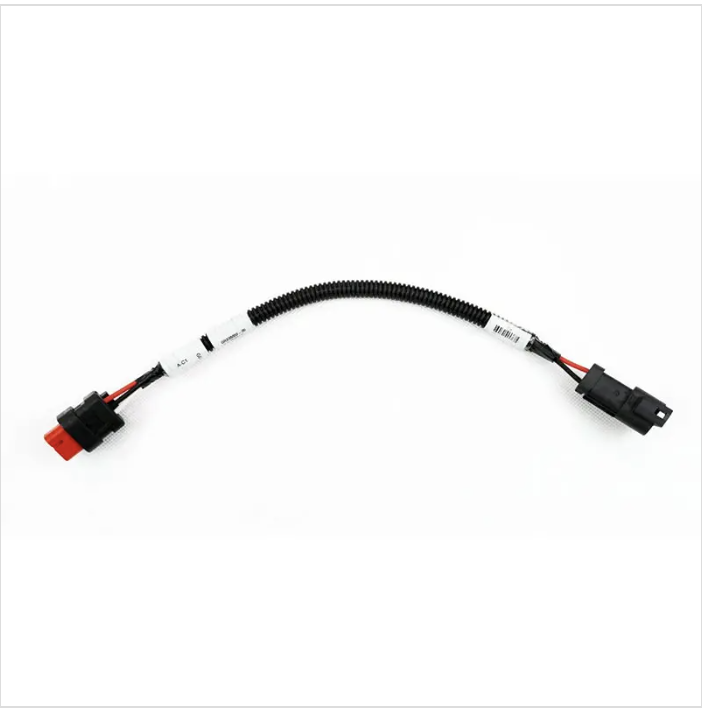

A: A wiring harness in a car is an organized set of wires, terminals, and connectors that run throughout the vehicle to transmit electrical power and signals to various components.
A: To repair a damaged wiring harness, identify the damaged sections, use wire strippers to remove insulation, solder or crimp new wire sections, and insulate connections with heat shrink tubing.
A: Replacement is necessary if the wiring harness has extensive damage, repeated failures, or poses safety concerns due to severe environmental exposure.
A: The cost of repairing a wiring harness varies based on damage extent and complexity, with minor repairs being more affordable than extensive rewiring.
A: Repairing a wiring harness can be cost-effective, restore functionality, and extend the life of the vehicle's electrical system if done correctly.
