Ever wondered how your car's electrical systems communicate seamlessly? The secret lies in the wiring harness. This essential component connects various electrical parts, ensuring smooth operation. But what happens when it fails? In this post, you'll learn about wiring harnesses, their significance in vehicles, and common issues they face. Discover how to diagnose and fix problems efficiently, ensuring your vehicle runs smoothly.

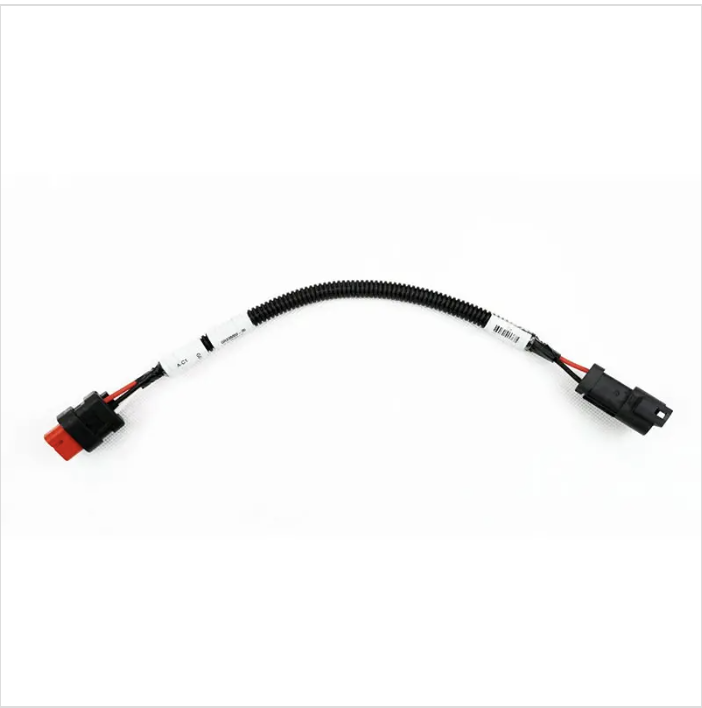

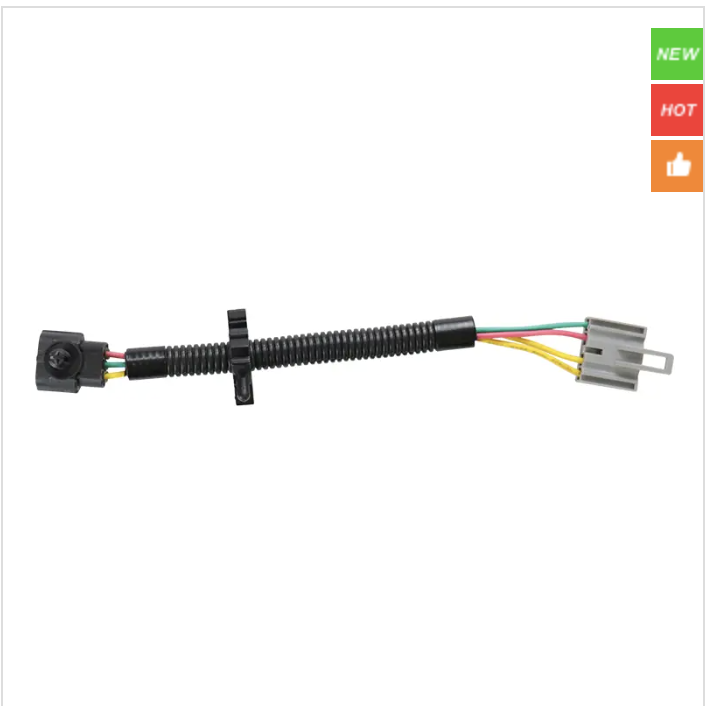

A wiring harness is a bundle of wires, connectors, and terminals that link various electrical components in a vehicle or machine. It typically includes:
Wires: Insulated conductors carrying electrical current.
Connectors: Devices that join wires to components or other wires.
Terminals: Metal ends that secure wires to connectors or devices.
Protective Sheathing: Covers that shield wires from heat, moisture, and abrasion.
This organized assembly simplifies installation, protects wiring from damage, and ensures reliable electrical connections.
Wiring harnesses serve as the central nervous system for electrical operations. They route power and signals between the battery, ignition, sensors, switches, and actuators. For example, in a zero turn mower, the harness connects the battery to the starter solenoid, safety switches, ignition switch, and blade engagement controls. This integration allows components to communicate and operate in harmony.
Harnesses are designed for specific layouts, matching the vehicle's architecture. They bundle wires to minimize clutter and reduce the risk of shorts or disconnections. Proper routing prevents wires from rubbing against moving parts or hot surfaces, which could cause failures.
Detecting wiring harness issues early prevents costly repairs. Signs include:
Intermittent Electrical Failures: Lights flicker, gauges act erratically.
Engine Starting Problems: Difficulty starting or unexpected shutdowns.
Blown Fuses: Frequent fuse replacements indicate shorts or overloads.
Visible Damage: Cracks, frayed wires, or melted insulation.
Corrosion: Green or white buildup on connectors impeding current flow.
Burnt Smell: Indicates overheating or short circuits.
If you notice these symptoms, inspect the harness for damage or loose connections. Using a multimeter can help test for continuity or shorts.
Tip: Label each wire and connector during inspection to quickly identify and trace circuits, streamlining diagnosis and repair.
Diagnosing wiring harness problems needs the right tools. Here are the essentials:
Multimeter: Measures voltage, resistance, and continuity to check wires and connections.
Test Light: Simple tool to detect power presence in wires.
Wire Strippers: For exposing wire ends safely during testing.
Electrical Tape: To insulate wires after testing or repairs.
Connector Pin Removal Tool: Helps remove pins from connectors without damage.
Wiring Diagram: Shows the wiring layout, essential for tracing circuits.
Flashlight: To see clearly in tight or dark spaces.
Having these tools ready makes diagnosis efficient and accurate.
1. Visual Inspection:Look for obvious damage like frayed wires, corrosion, burnt areas, or loose connectors. Check for rodent damage or rubbing spots.
2. Check for Power:Using a test light or multimeter, verify if power reaches various points. Start at the battery and follow the circuit path.
3. Test Continuity:With the multimeter set to continuity mode, check if wires have breaks. Touch probes at both ends of a wire; a beep means good continuity.
4. Inspect Connectors:Remove connectors and inspect pins for corrosion, bent or broken terminals. Clean or replace as needed.
5. Check Grounds:A bad ground can cause electrical issues. Test ground wires by measuring resistance between the wire and vehicle frame; it should be near zero.
6. Look for Shorts:A short circuit occurs when wires touch each other or ground unintentionally. Use the multimeter to check for shorts between wires or to ground.
7. Use Wiring Diagram:Follow the diagram to identify which wires go where. This helps isolate problem areas.
Intermittent Electrical Operation: Lights flicker or gauges jump.
Engine Won’t Start or Stalls: Power interruptions cause starting issues.
Blown Fuses: Repeated fuse failures indicate shorts or overloads.
Non-Functional Accessories: Horn, lights, or indicators stop working.
Burnt Smell or Visible Melting: Indicates overheating or short.
Corroded or Loose Connectors: Cause poor electrical contact.
Unexpected Shutdowns: Engine or electrical system cuts off randomly.
If you spot these symptoms, diagnosing the wiring harness thoroughly is crucial to avoid further damage.
Tip: Always label wires and connectors during diagnosis to track circuits easily and speed up repairs.
Before starting the repair, preparation is key to avoid mistakes and ensure safety. First, disconnect the battery or power source to prevent electrical shocks or shorts. Gather all necessary tools, including wire strippers, crimpers, a multimeter, electrical tape, heat shrink tubing, and replacement wiring or connectors. Have the wiring diagram for your specific vehicle or device handy; it will guide you on correct connections.
Next, clean your workspace and wear protective gear like gloves and safety glasses. Label wires and connectors before disconnecting them to keep track of their original positions. This labeling helps during reassembly and reduces errors. Inspect the area around the wiring harness for dirt, moisture, or corrosion and clean it gently if needed.
Careful removal of the damaged harness is crucial. Start by gently disconnecting all connectors and terminals linked to the harness. Avoid pulling on wires directly to prevent further damage. Use connector pin removal tools if necessary to safely extract pins without bending or breaking them.
Cut any zip ties, clamps, or fasteners securing the harness to the frame or body. Keep track of these fasteners as you will need them for reinstallation. If wires are spliced or soldered, use wire cutters or desoldering tools to separate connections cleanly.
Remove the entire damaged harness carefully, ensuring not to disturb nearby components or wiring. Inspect the harness thoroughly to determine the extent of damage and whether partial repair or full replacement is needed.
Installing a new wiring harness requires precision. Begin by laying out the new harness alongside the route of the old one. Compare connectors and wire lengths to ensure compatibility. Secure the harness loosely at first to allow adjustments.
Connect the harness terminals and connectors one by one, referring to your labels and wiring diagram. Use proper crimping or soldering techniques for splices, and insulate connections with heat shrink tubing or electrical tape to prevent shorts.
Route the harness away from heat sources, sharp edges, and moving parts to avoid future damage. Secure it firmly using zip ties or clamps, replicating the original harness’s routing. Double-check all connections for tightness and correct placement.
Finally, reconnect the battery or power source and test the electrical system. Use a multimeter to verify voltage and continuity at critical points. Turn on the vehicle or device to ensure all functions operate correctly. If problems arise, recheck connections and wiring paths carefully.
Tip: Label wires and connectors before removal and keep a photo record of the original harness layout to simplify reinstallation and reduce errors.
Working on wiring harnesses involves risks like electrical shocks and short circuits. Always disconnect the battery or power source before starting any repair. This prevents accidental shocks or damage to components. Wear insulated gloves and safety glasses to protect yourself from sparks or debris. Avoid working in wet or damp areas to reduce the risk of electric shock. Use a multimeter to confirm no voltage is present before touching wires. Never bypass safety switches permanently; they protect you during machine operation.
Use tools designed for electrical work, such as wire strippers, crimpers, and insulated screwdrivers. Avoid using damaged or worn tools, as they can cause injury or damage wiring. When stripping wires, be careful not to nick or cut the conductor, which weakens the wire and can lead to failure. Use the correct size connectors and terminals to ensure secure connections. When soldering, work in a well-ventilated area and handle the soldering iron carefully to avoid burns. Heat shrink tubing or electrical tape should insulate all splices and connections to prevent shorts.
Loose or poor connections cause intermittent faults and overheating. After making connections, tug gently on wires to confirm they are firmly attached. Crimp connectors must be tight and properly aligned; a loose crimp can cause resistance and heat buildup. When soldering, ensure a clean, shiny joint without excess solder. Cover all exposed metal with insulation materials. Route wires away from sharp edges, moving parts, or hot surfaces to prevent abrasion or melting. Use zip ties or clamps to secure the harness and prevent vibration damage.
Tip: Always double-check that the power source is disconnected before handling wiring to avoid shocks and equipment damage.
Fixing a wiring harness can vary widely in time, depending on several key factors:
Extent of Damage: Minor cuts or corrosion might take just an hour or two. Severe damage, like burnt wires or multiple broken connectors, can take much longer.
Complexity of the Harness: Harnesses with many circuits and connectors take more time to diagnose and repair. Simple harnesses are quicker.
Accessibility: If the harness is easy to reach, repairs go faster. Tight spaces or harnesses routed through panels or engine compartments slow the process.
Availability of Replacement Parts: Having the correct wires, connectors, and tools ready speeds up repairs. Waiting for parts can delay completion.
Experience of the Technician: Skilled technicians work efficiently, reducing repair time. Beginners may take longer to ensure accuracy and safety.
Diagnostic Time: Sometimes, finding the exact problem takes longer than the actual repair, especially if symptoms are intermittent.
On average, fixing a wiring harness can take anywhere from 2 to 6 hours. For simple repairs like replacing a damaged wire or connector, expect 1 to 3 hours. For full harness replacements or complex rewiring, it can stretch to 6 hours or more. In professional shops, full replacements might be done within a day, but DIY repairs could take longer due to limited tools or experience.
Prepare Tools and Parts in Advance: Have wire strippers, crimpers, multimeter, connectors, and replacement wire ready before starting.
Label Wires and Take Photos: Document the original wiring layout. This helps avoid confusion and speeds up reassembly.
Use Wiring Diagrams: Refer to accurate diagrams to quickly trace circuits and identify problem areas.
Work in a Clean, Well-Lit Area: Good lighting and a tidy workspace reduce mistakes and improve efficiency.
Test Continuity Early: Use a multimeter to confirm wire integrity before making repairs, preventing repeated work.
Replace Rather Than Repair When Possible: Sometimes swapping the entire harness saves time over patching multiple spots.
Seek Professional Help for Complex Issues: Experts have experience and equipment to finish repairs faster and safer.
Tip: Always prepare your tools, parts, and wiring diagrams before starting to fix a wiring harness to minimize downtime and ensure a smooth, efficient repair process.
Regular inspection is key to keeping a wiring harness in good condition. Check the harness visually for cracks, frayed wires, or corrosion on connectors. Look for signs of wear caused by heat, vibration, or moisture. Use a multimeter to test continuity and resistance in wires periodically. This helps spot hidden issues like internal breaks or high resistance before they cause failures. Testing safety switches and connectors ensures they function properly. Schedule inspections during routine vehicle or equipment maintenance to catch problems early.
Protecting the wiring harness prevents costly repairs. Use protective sheathing or conduit around wires to shield them from abrasion and heat. Avoid routing wires near sharp edges, moving parts, or hot engine components. Secure the harness with clamps or zip ties to stop movement that causes wear. Apply dielectric grease to connectors to prevent corrosion and improve electrical contact. Keep the harness dry and clean by sealing entry points and avoiding exposure to water or chemicals. Consider rodent deterrents if animals are a risk in storage areas.
Upgrading the wiring harness can improve reliability and performance. Use higher quality wires with better insulation and heat resistance for longer life. Modern connectors with locking features reduce the chance of loose connections. Adding extra protective layers or flexible conduit can protect against harsh environments. Custom harnesses tailored to your vehicle or equipment layout simplify installation and reduce clutter. Upgrades may include adding fuse blocks or relays to protect circuits. Consult wiring diagrams and experts when planning upgrades to ensure compatibility and safety.
Tip: Schedule regular wiring harness inspections and apply protective coatings to extend lifespan and prevent unexpected failures.

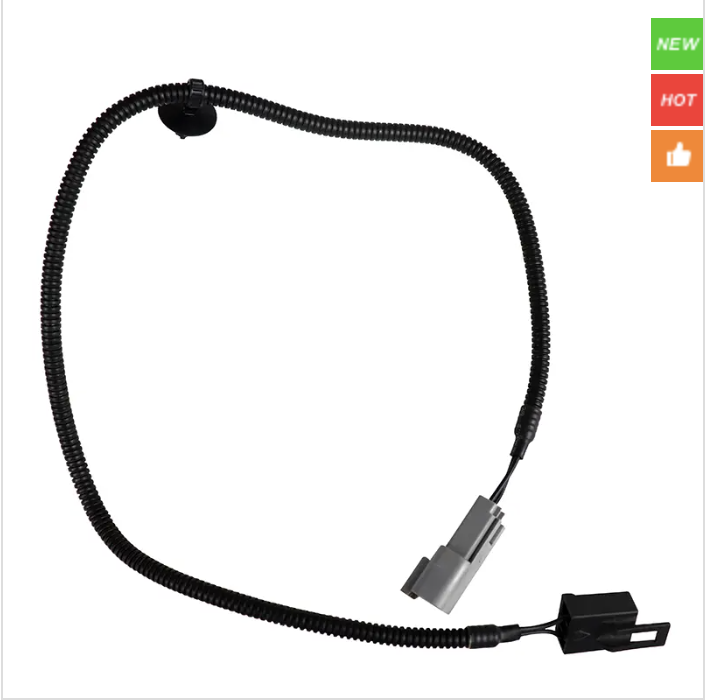

Fixing a wiring harness typically takes 2 to 6 hours, depending on damage, complexity, and accessibility. Timely repairs prevent costly issues like electrical failures or engine problems. Regular maintenance and inspections are crucial for optimal performance and longevity. Shandong Qianyu Construction Machinery Co., LTD. offers high-quality wiring harness solutions that enhance reliability and safety. Their products are designed for durability, ensuring your machinery operates smoothly and efficiently, adding significant value to your operations.
A: A wiring harness is a bundle of wires, connectors, and terminals that link electrical components in a vehicle or machine, ensuring reliable connections and simplifying installation.
A: A wiring harness routes power and signals between components like the battery, ignition, and sensors, enabling them to communicate and operate harmoniously.
A: Faulty wiring harnesses exhibit signs like intermittent electrical failures, engine starting problems, blown fuses, visible damage, corrosion, or a burnt smell.
A: Repair costs vary based on damage extent and complexity; minor repairs are cheaper, while full replacements or complex rewiring can be more expensive.
A: Upgrading improves reliability and performance by using higher quality wires, modern connectors, and additional protective layers, reducing wear and enhancing safety.
A: Diagnose issues using tools like a multimeter, test light, and wiring diagram, inspecting for damage, checking power and continuity, and testing grounds and connectors.
