Ever wondered why your car's electrical systems suddenly misbehave? A wiring harness might be the culprit. This essential component connects various electrical parts, ensuring smooth operation. Diagnosing a bad wiring harness is crucial to avoid costly repairs and safety hazards. In this post, you'll learn what a wiring harness is, its importance, and common symptoms indicating it's faulty.

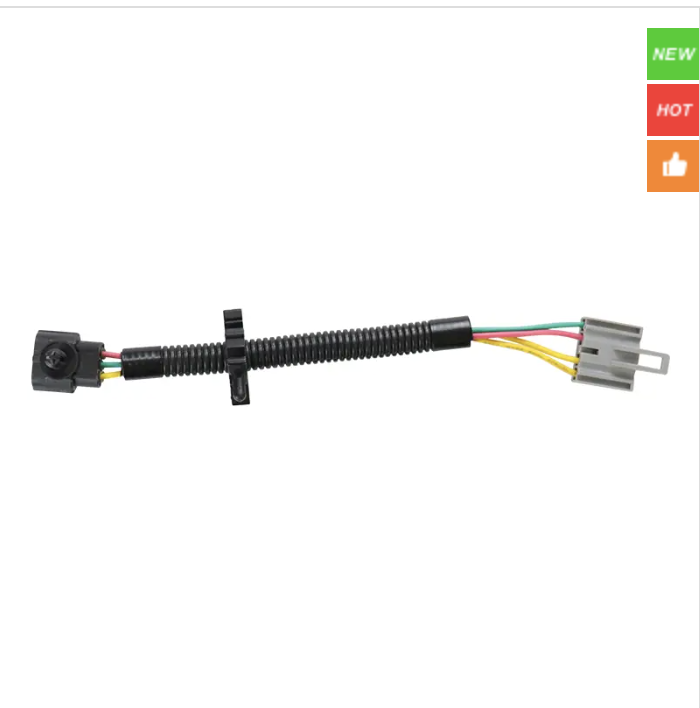

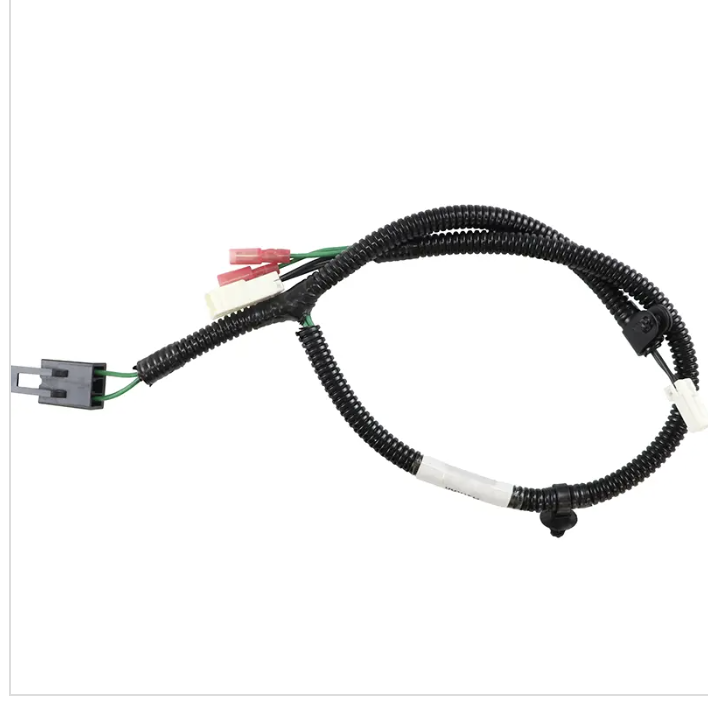

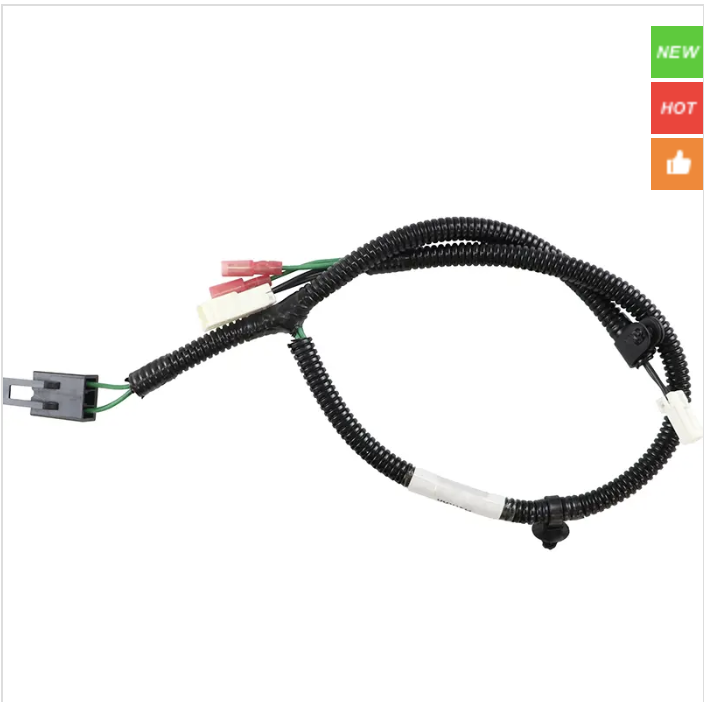

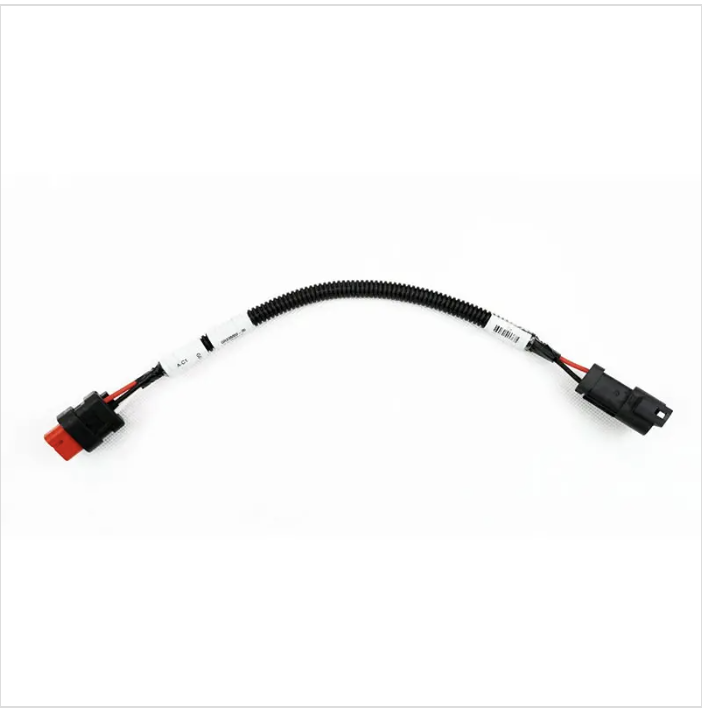

A wiring harness is a bundle of wires and connectors that link various electrical parts in a vehicle or machine. It typically includes:
● Wires: Conduct electricity between components.
● Connectors: Join wires to devices or other wiring sections.
● Terminals: Metal ends on wires that fit into connectors.
● Protective coverings: Such as plastic or fabric sleeves, which shield wires from damage.
● Clips and ties: Hold the harness in place and prevent movement or abrasion.
Each component ensures electrical signals and power move safely and efficiently throughout the system.
In vehicles, wiring harnesses act like the nervous system. They transmit electrical power and signals from the battery and control units to various parts such as lights, sensors, ignition systems, and entertainment units. The harness organizes wires into a single unit, simplifying installation and maintenance.
When you turn on your car, the wiring harness carries current to the starter motor, lights, and dashboard. Sensors send data back through the harness to the engine control unit, allowing the vehicle to adjust performance. Without a properly functioning harness, these connections could fail, leading to malfunctions or safety hazards.
The wiring harness plays a vital role in ensuring electrical systems work reliably by:
● Protecting wires: Bundling wires prevents wear caused by friction, heat, or moisture.
● Reducing installation errors: Pre-assembled harnesses match specific vehicle models, reducing mistakes.
● Facilitating diagnostics: Organized wiring makes it easier for technicians to find faults.
● Improving safety: Insulated and secured wires reduce the risk of short circuits and fires.
● Enhancing durability: Harnesses withstand vibrations and environmental stress better than loose wires.
In essence, the wiring harness is the backbone of a vehicle’s electrical network, enabling all components to communicate and function properly.
Tip: Always refer to your vehicle’s wiring diagram before inspecting or repairing the harness to identify components and wiring paths accurately.
Identifying a bad wiring harness early can save you from costly repairs and unsafe situations. Here are the most common signs to watch for:
One of the first clues of a faulty wiring harness is electrical problems that come and go. You might notice:
● Flickering dashboard lights
● Headlights dimming or brightening unexpectedly
● Radio or other accessories cutting out randomly
These issues happen because damaged wires or loose connections disrupt the flow of electricity. The problem may seem to fix itself temporarily but will likely worsen over time.
A bad wiring harness can affect how your engine runs. Some symptoms include:
● Engine stalling without warning
● Difficulty starting the vehicle
● Irregular idling or misfires
● Sudden loss of power while driving
Since the wiring harness connects sensors and control units, any damage can send incorrect signals or cut power. This can confuse the engine control unit, causing erratic behavior.
If certain electrical parts stop working, the wiring harness might be the culprit. Watch for:
● Non-functioning headlights, brake lights, or turn signals
● Power windows or locks that don’t respond
● Malfunctioning dashboard gauges or warning lights
● Inoperative fuel pump or ignition system
These failures often point to broken wires, corroded connectors, or short circuits in the harness. Sometimes, the damage is localized, affecting only specific systems.
Note: Intermittent or partial electrical failures often indicate wiring harness issues rather than component faults, so always inspect the harness first when diagnosing electrical problems.
Start by carefully examining the wiring harness for visible signs of damage. Look for:
● Frayed or cracked insulation: Exposed wires can cause shorts or open circuits.
● Burn marks or melted sections: Indicate overheating or electrical shorts.
● Corroded connectors: Green or white buildup can interrupt electrical flow.
● Loose or disconnected connectors: Can cause intermittent failures.
● Broken clips or ties: Allow wires to move and wear prematurely.
Use a flashlight to inspect hard-to-see areas. Gently wiggle wires and connectors to check for looseness or breaks. Pay attention to areas where the harness bends or passes near heat sources, as these spots often suffer wear.
A multimeter is essential for diagnosing wiring harness issues. It helps measure:
● Continuity: Checks if a wire is intact from end to end.
● Voltage: Confirms power reaches components.
● Resistance: Detects corrosion or damaged wires causing high resistance.
To test continuity, disconnect the battery and isolate the wire. Set the multimeter to continuity mode, touch probes to each wire end, and listen for a beep. No beep means a break exists.
Check voltage by turning on the ignition and measuring voltage at connectors. Compare readings to the vehicle’s wiring diagram for expected values.
Measure resistance across connectors; unusually high resistance suggests corrosion or damage.
Damaged wires often have:
● Cuts or nicks exposing copper.
● Burnt or discolored insulation.
● Stiffness or brittleness indicating heat damage.
Connectors may show:
● Bent or broken pins.
● Loose fit or corrosion inside.
● Cracked or broken plastic housings.
If you find damage, mark the location and plan for repair or replacement. Sometimes, damage is hidden inside connectors, so carefully disconnect and inspect both sides.
Tip: Always disconnect the battery before testing or handling wiring to prevent shorts and ensure safety during diagnosis.
Before starting any repair or replacement, gather all the tools and materials you’ll need. Having everything ready saves time and ensures safety. Common tools and materials include:
● Wire strippers and cutters: For removing insulation and cutting wires to length.
● Crimping tool: To attach connectors securely.
● Soldering iron and solder: For strong, durable wire connections.
● Heat shrink tubing: To insulate and protect spliced wires.
● Electrical tape: For additional insulation and securing wires.
● Replacement wire and connectors: Match the gauge and type of the original wires.
● Multimeter: To test electrical continuity and voltage.
● Zip ties and clips: To organize and secure the harness in place.
● Protective gloves and safety glasses: For personal protection.
Having a wiring diagram or service manual for your vehicle or equipment is also essential. It helps identify wire colors, connector types, and routing paths.
Working with electrical systems carries risks. Follow these safety precautions to avoid injury or further damage:
● Disconnect the battery or power source before starting any work.
● Wear insulated gloves and safety glasses to protect against shocks and debris.
● Work in a dry, well-lit area to reduce hazards.
● Avoid loose clothing or jewelry that could catch on components.
● Use tools properly and keep them in good condition.
● Label wires before disconnecting to avoid confusion during reassembly.
● Double-check connections before reconnecting power.
● Never work on live circuits unless absolutely necessary and you’re trained.
1. Identify the damaged section: Use your visual inspection and multimeter tests to locate breaks, corrosion, or shorts.
2. Remove damaged wires: Cut out the faulty wire sections carefully without damaging adjacent wires or connectors.
3. Prepare replacement wires: Cut new wires to the proper length, strip insulation about ¼ inch from each end.
4. Make connections:Soldering method: Twist wire ends together, solder the joint, then slide heat shrink tubing over and shrink it with heat.
a. Crimping method: Use crimp connectors and a crimping tool to secure wires, then cover with heat shrink tubing.
5. Insulate and protect: Use heat shrink tubing or electrical tape to cover exposed connections fully. This prevents shorts and corrosion.
6. Secure the harness: Use zip ties or clips to fasten the harness back in place, avoiding sharp edges, moving parts, or heat sources.
7. Reconnect the battery or power source: Once all repairs are complete, reconnect power.
8. Test the system: Turn on the vehicle or equipment and check if all electrical components function correctly. Use a multimeter to verify voltage and continuity where needed.
9. Final inspection: Ensure no loose wires or connectors remain. Confirm the harness is routed safely and securely.
If the damage is extensive or connectors are corroded beyond repair, consider replacing the entire wiring harness. This can be a more reliable long-term solution.
Tip: When repairing wiring harnesses, always use wires and connectors that match the original specifications to ensure safety and proper function.
Keeping your wiring harness in good shape starts with regular checks. Inspect the harness every few months or during routine vehicle maintenance. Look for signs of wear such as cracks, frayed wires, or loose connectors. Clean connectors gently to remove dirt or corrosion that can cause poor electrical contact. Tighten any loose clips or ties that hold the harness in place to prevent movement or rubbing against sharp edges.
Make it a habit to check electrical components like lights, sensors, and switches for proper function. Early detection of any electrical issues can point to wiring harness problems before they worsen. During oil changes or tire rotations, ask your mechanic to include a wiring inspection.
Environmental factors like moisture, heat, dirt, and chemicals can damage wiring harnesses over time. Protect your harness by ensuring it is routed away from heat sources such as exhaust pipes or engine blocks. Use protective sleeves or conduit to shield wires from abrasion and exposure.
Seal connectors with dielectric grease to repel moisture and prevent corrosion. Avoid washing the engine bay with high-pressure water, which can force water into connectors and cause shorts. If you live in an area with harsh winters, rinse off road salt promptly since it accelerates corrosion.
When working on your vehicle, be cautious not to pinch or stretch wires. Rodents can also chew on wiring, so consider rodent deterrents if you notice signs of gnawing.
To maximize your wiring harness’s lifespan, follow these best practices:
● Use original or high-quality replacement parts that match wire gauge and insulation type.
● Avoid splicing wires unnecessarily; if you must, use proper connectors and seal splices with heat shrink tubing.
● Secure wiring harnesses firmly using clips or zip ties to prevent vibration damage.
● Keep wiring diagrams handy to avoid incorrect connections during repairs.
● Schedule professional inspections if you suspect hidden damage or if electrical issues persist despite repairs.
By treating your wiring harness gently and protecting it from harm, you reduce the risk of electrical failures and costly repairs. A well-maintained harness supports your vehicle’s reliability and safety.
Tip: Regularly applying dielectric grease to connectors can significantly reduce moisture-related corrosion and extend wiring harness life.
Sometimes, wiring harness problems go beyond simple fixes. If you notice persistent electrical issues despite your efforts, it’s wise to get professional help. Here are signs it’s time to call an expert:
● Complex or hidden damage: If wires are deeply embedded or connectors corroded inside, professionals have tools to inspect and repair safely.
● Repeated fuse blowouts or shorts: These may point to wiring faults requiring advanced diagnostics.
● Lack of wiring diagrams or technical knowledge: Professionals have access to detailed schematics and training.
● Safety concerns: If you’re unsure about handling electrical systems, a technician can prevent injury or further damage.
● Extensive harness replacement: Large-scale rewiring is often best done by specialists to ensure reliability and compliance with safety standards.
Professional electricians or certified automotive technicians use specialized equipment like advanced multimeters, oscilloscopes, and wiring testers. They also ensure repairs meet manufacturer specifications, preserving your vehicle’s warranty and safety.
If you want to try troubleshooting yourself or learn more, many resources can help:
● Service manuals: Manufacturer manuals provide wiring diagrams, connector pinouts, and troubleshooting guides.
● Online forums and communities: Platforms like automotive or machinery forums often have experienced members sharing fixes.
● YouTube tutorials: Step-by-step videos demonstrate inspection, testing, and repair techniques.
● Diagnostic tools: Affordable multimeters and circuit testers are essential for DIY diagnosis.
● Manufacturer or dealer support: Contacting the equipment maker can provide official guidance or replacement parts.
● Technical training courses: For professionals or enthusiasts, courses on automotive electrical systems deepen understanding.
Using these resources can improve your skills and confidence in diagnosing wiring harness problems safely and effectively.
Q1: Can a bad wiring harness cause the engine not to start?Yes, damaged wires or connectors can interrupt power or sensor signals, preventing engine start.
Q2: How do I know if a wiring harness needs repair or full replacement?Minor damage like a few frayed wires can be repaired. Extensive corrosion, melting, or multiple broken connectors usually require replacement.
Q3: Is it safe to drive with a faulty wiring harness?It’s risky. Faulty wiring can cause intermittent failures, short circuits, or even fires. Address issues promptly.
Q4: How long does wiring harness repair take?Simple repairs may take under an hour. Full replacements can take several hours depending on vehicle complexity.
Q5: Can I use generic wiring harnesses as replacements?Generic harnesses might not fit or meet specifications. Always aim for OEM or high-quality custom harnesses designed for your model.
Q6: What tools do I need for wiring harness troubleshooting?A multimeter, wire strippers, crimpers, soldering iron, and wiring diagrams are essential.
Tip: When in doubt, consult a professional early to avoid costly mistakes and ensure your wiring harness is safe and reliable.
Identifying a faulty wiring harness is crucial for vehicle safety and performance. Symptoms include intermittent electrical issues, unusual engine behavior, and component failures. Regular inspections and preventive measures help maintain harness health. Addressing issues promptly prevents costly repairs and ensures reliability. Shandong Qianyu Construction Machinery Co., LTD. offers high-quality wiring harness solutions, enhancing vehicle safety and efficiency. Their products are designed to withstand environmental stress, providing long-term value and reliability.
A: Common signs include intermittent electrical issues, unusual engine behavior, and failure of electrical components. These symptoms indicate potential damage or faults in the wiring harness.
A: A wiring harness transmits electrical power and signals, organizing wires into a single unit, simplifying installation and maintenance, and ensuring reliable communication between components.
A: Regular maintenance prevents wear, corrosion, and environmental damage, ensuring safety and reliable function. A well-maintained wiring harness reduces the risk of costly repairs and electrical failures.
