Have you ever wondered how a car’s electrical system works seamlessly? The wiring harness is the key component that makes this possible.
In this article, we’ll explore what a wiring harness is, its basic functions, and why it’s often called the vehicle's "nervous system."
You’ll learn about its vital role in automotive electrical systems and how it connects various components for optimal performance.

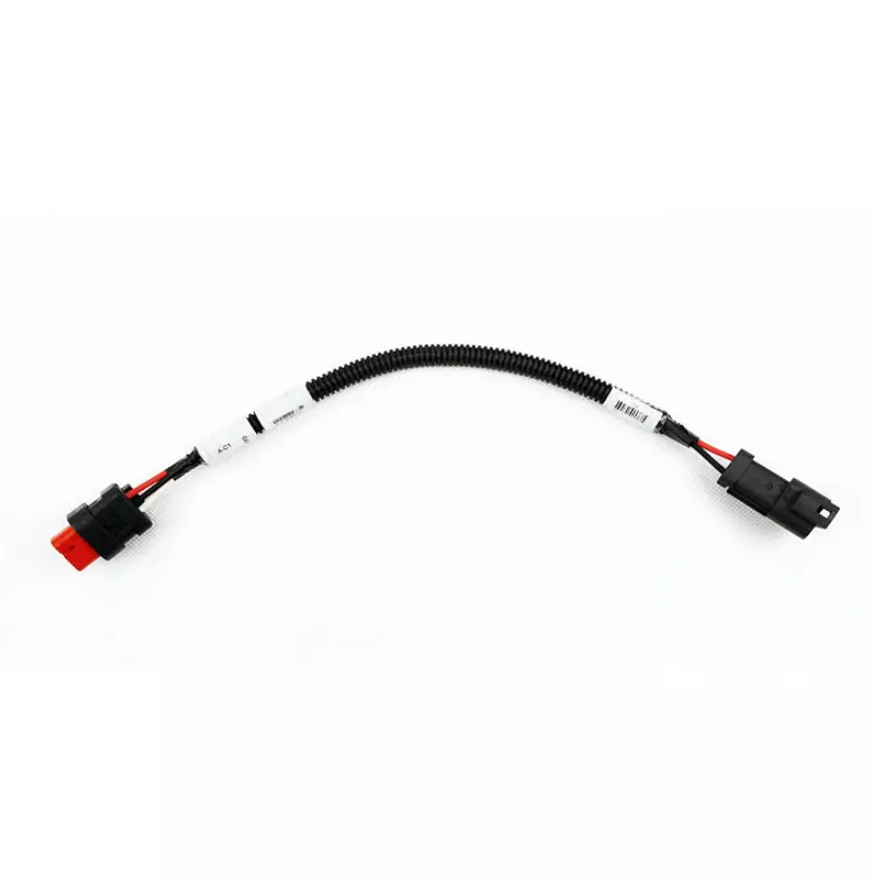

A wiring harness is a crucial component in any vehicle. It serves as a network of wires, connectors, and terminals that facilitate the transmission of electrical power and signals throughout the car.
The primary function of a wiring harness is to connect various electrical components. This includes the battery, lights, sensors, and control units. By organizing these connections, it helps prevent electrical shorts and ensures reliable operation.
● Key Functions:Power Distribution: Delivers electricity to different parts.
○ Signal Transmission: Sends information between components.
○ Protection: Insulates wires to prevent damage.
In modern vehicles, the wiring harness plays a vital role in the overall electrical system. It simplifies the complex web of electrical connections, making it easier to troubleshoot and repair issues.
● Benefits:Efficiency: Reduces clutter and enhances airflow.
○ Reliability: Minimizes the risk of electrical failures.
○ Safety: Protects against short circuits and fire hazards.
The analogy of the wiring harness being the "nervous system" of a vehicle is fitting. Just as the nervous system transmits signals throughout the body, the wiring harness carries electrical signals and power to various components.
● Similarities:Communication: Both systems relay important information.
○ Coordination: They ensure smooth operation of systems.
○ Response: Quick reactions to changes or malfunctions.
Think of the wiring harness like the veins and arteries in our bodies. These structures carry blood, which is essential for life. Similarly, the wiring harness transports electrical energy, vital for a vehicle's operation.
● Visual Representation:
Biological System | Car System |
Blood Vessels | Wiring Harness |
Heart | Battery |
Nerves | Sensors and Controls |
This analogy highlights how essential the wiring harness is for maintaining the vehicle's functionality. Just as our body relies on a healthy circulatory system, a car depends on a well-designed wiring harness for optimal performance.
A wiring harness is made up of several key components. Each part plays a crucial role in ensuring the electrical system functions properly. Let’s break down these components.
1. Wires
a. Heavy-Gauge Wires: Used for high-current applications like the battery and starter.
b. Fine-Strand Wires: Ideal for flexible connections and smaller components.
2. Connectors
a. SAE Connectors: Common in automotive applications, they ensure reliable connections.
b. Deutsch Connectors: Known for durability, they are often used in harsh environments.
c. Weatherproof Connectors: Designed to resist moisture and dust, enhancing longevity.
3. Protective Sheaths and Insulation Materials
a. These materials protect wires from abrasion, heat, and environmental factors. They ensure safety and reliability.
Automotive wiring harnesses utilize various types of wires, each suited for specific needs.
● Overview of Wire Gauge and Types:
○ Copper Wires: Most common due to excellent conductivity.
○ Aluminum Wires: Lighter and less expensive, but less conductive.
● Differences Between High-Current and Low-Voltage Wires:
○ High-Current Wires: Thicker and designed to handle significant power loads.
○ Low-Voltage Wires: Thinner, used for sensors and control signals.
The variety of connectors in a wiring harness is essential for several reasons.
● Importance of Waterproof/Dustproof Performance:
○ Connectors rated IP67/IP69K are designed to withstand immersion in water and exposure to dust. This ensures reliability in different environments.
● Compatibility with CAN/LIN Bus Systems:
○ Many modern vehicles use Controller Area Network (CAN) or Local Interconnect Network (LIN) systems. Connectors must support these protocols for effective communication between components.
Component Type | Description | Example Use |
Heavy-Gauge Wires | Thick wires for high current | Battery connections |
Fine-Strand Wires | Flexible wires for smaller components | Sensors |
SAE Connectors | Standard connectors for automotive applications | General connections |
Deutsch Connectors | Durable connectors for harsh environments | Off-road vehicles |
Weatherproof Connectors | Protect against moisture and dust | Exterior lighting |
Understanding these components helps appreciate how a wiring harness functions effectively. Each part is designed to work together, ensuring the vehicle operates smoothly.
A wiring harness serves several vital functions in a car. Understanding these functions helps us appreciate its role in vehicle performance and safety.
1. Power Transmission
a. The wiring harness is responsible for delivering electrical power from the battery to various components. This includes everything from the headlights to the engine control unit.
2. Signal Transmission
a. It carries signals between sensors, switches, and control modules. This communication is essential for the vehicle’s operation and responsiveness.
3. Reducing Clutter and Interference
a. By organizing wires into a single harness, it minimizes clutter in the engine bay and reduces electromagnetic interference (EMI). This design enhances overall efficiency.
The wiring harness plays a crucial role in ensuring vehicle safety and reliability.
● Role in Critical Systems:
○ Systems like airbags and Anti-lock Braking Systems (ABS) rely on the wiring harness for timely and accurate signal transmission. A failure here could have serious consequences.
● Importance of EMI/RFI Shielding:
○ Many wiring harnesses include shielding to protect against electromagnetic interference (EMI) and radio-frequency interference (RFI). This shielding is vital for maintaining the integrity of signals in sensitive systems.
In modern vehicles, especially electric ones, the wiring harness has evolved to include hybrids.
● Combining High-Voltage Lines:High-voltage lines, such as those used in electric vehicle (EV) battery systems, are integrated with low-voltage signal wires. This design allows for efficient power distribution while ensuring that control signals remain unaffected.
Function | Description | Importance |
Power Transmission | Delivers power to components | Essential for operation |
Signal Transmission | Communicates between sensors and modules | Vital for responsiveness |
Reducing Clutter and Interference | Minimizes wire clutter and EMI | Enhances efficiency |
Role in Critical Systems | Supports safety features like airbags and ABS | Critical for safety |
EMI/RFI Shielding | Protects sensitive signals from interference | Maintains signal integrity |
Power & Signal Hybrid | Combines high-voltage and low-voltage lines | Efficient power distribution |
The functions of a wiring harness are integral to the overall performance and safety of a vehicle. Each role contributes to a seamless driving experience, making it a critical component in automotive design.
Wiring harnesses are not one-size-fits-all. They are tailored to meet the specific needs of different vehicles. Let's explore how this customization works and its benefits.
1. OEM-Grade Components and Designs
a. Original Equipment Manufacturer (OEM) components ensure high quality and compatibility. These parts are designed to meet the exact specifications of vehicle manufacturers.
2. Importance of Compatibility with Vehicle Models
a. Each vehicle model has unique electrical requirements. Custom wiring harnesses are designed to fit these needs, ensuring seamless integration. This compatibility is crucial for performance and safety.
● Enhanced Performance and Reliability
○ Custom wiring harnesses improve overall vehicle performance. They reduce the risk of electrical failures, ensuring that all systems operate smoothly.
● Reduced Installation Time and Complexity
○ A well-designed harness simplifies installation. Fewer parts and clear labeling mean technicians can work more efficiently, saving time and reducing labor costs.
Functional integration takes wiring harness design to the next level.
● Pre-Labeled Wires and Pre-Installed ComponentsMany customizable harnesses come with pre-labeled wires. This feature streamlines the assembly process, making it easier for technicians to connect everything correctly. Pre-installed components further enhance efficiency by reducing assembly steps.
Customization Aspect | Description | Benefit |
OEM-Grade Components | High-quality parts designed for specific vehicles | Ensures reliability |
Compatibility | Tailored to fit unique vehicle models | Enhances performance |
Enhanced Performance | Improves system efficiency and reduces failures | Increases reliability |
Installation Efficiency | Simplified assembly with fewer parts | Saves time and labor costs |
Functional Integration | Pre-labeled wires and components | Streamlines assembly |
Customizing wiring harnesses is essential for modern vehicles. It not only boosts performance but also makes installation easier, ensuring that every vehicle runs as intended.
Wiring harnesses face various environmental challenges in vehicles. Understanding how they are designed to cope with these conditions is crucial for their performance and longevity.
1. Temperature Resistance and Insulation Materials
a. Wiring harnesses utilize advanced insulation materials. These materials can withstand extreme temperatures, ensuring that wires remain functional in both hot and cold climates. For instance, heat-resistant polymers can handle high engine temperatures.
2. Corrosion Protection Measures
a. Corrosion can severely impact electrical connections. To combat this, manufacturers apply protective coatings to wires and connectors. These coatings prevent moisture and chemicals from causing damage, extending the harness's life.
3. Vibration Resistance Testing
a. Vehicles experience constant vibrations. Wiring harnesses undergo rigorous vibration resistance testing to ensure they remain intact under these conditions. This testing simulates real-world driving scenarios, ensuring durability.
Electric vehicles present unique challenges for wiring harness design.
● High-Voltage Systems and Low-Voltage Signal Integration
○ EVs require wiring harnesses that can handle high-voltage systems, such as those from battery packs. Additionally, they must integrate low-voltage signals for various vehicle functions, making design complexity essential.
● Adaptations for Hybrid and Electric Vehicles
○ Hybrid and electric vehicles often have unique layouts. Wiring harnesses must be adaptable to fit different architectures while ensuring safety and efficiency. This includes using specialized materials that can manage the specific demands of these vehicles.
Environmental Aspect | Description | Importance |
Temperature Resistance | Insulation materials withstand extreme temperatures | Ensures functionality |
Corrosion Protection | Protective coatings prevent moisture damage | Extends harness life |
Vibration Resistance Testing | Rigorous tests ensure durability under vibrations | Maintains reliability |
High-Voltage Systems | Designed for safe integration with battery systems | Essential for EV performance |
Adaptations for EVs | Custom designs meet unique vehicle needs | Enhances safety and efficiency |
Wiring harnesses are engineered to thrive in challenging environments. Their design considerations are vital for ensuring that vehicles operate safely and effectively, especially in the evolving landscape of electric and hybrid vehicles.
When it comes to wiring harnesses, there are significant differences between OEM (Original Equipment Manufacturer) wiring harnesses and generic aftermarket solutions. Let's dive into these differences and understand why they matter.
1. Quality and Performance Comparisons
a. OEM Wiring Harnesses: Designed specifically for each vehicle model, OEM harnesses ensure optimal performance. They use high-quality materials and are tested rigorously.
b. Generic Aftermarket Solutions: While often cheaper, these solutions may not meet the same quality standards. They might use lower-grade materials, leading to potential issues down the line.
2. Cost vs. Reliability Considerations
a. Cost: Generic solutions tend to be less expensive. However, this lower price can come at a cost.
b. Reliability: OEM harnesses offer better reliability, reducing the risk of electrical failures. Investing in a quality harness can save money on repairs and replacements later.
● Long-Term Benefits and ValuePremium wiring harnesses provide long-term benefits. They enhance vehicle performance and safety. By choosing quality, consumers can avoid frequent replacements and costly repairs, ultimately providing better value over time.
● Focus on Basic Connectors
○ Universal wiring harnesses often focus on basic connectors. While they may fit a variety of vehicles, they lack the specific design needed for modern cars.
● Compatibility Issues with Modern Vehicles
○ Many modern vehicles have unique electrical systems. Universal harnesses may not integrate well, leading to compatibility issues. This can result in poor performance or even safety hazards.
Aspect | OEM Wiring Harnesses | Generic Aftermarket Solutions |
Quality | High-quality materials, tailored designs | Variable quality, lower-grade materials |
Performance | Optimized for specific vehicle models | May not perform as well |
Cost | Higher upfront cost, but long-term value | Lower initial cost, potential future costs |
Reliability | Proven durability and reliability | Higher risk of failure |
Compatibility | Designed for modern vehicle systems | May face compatibility challenges |
Choosing the right wiring harness can greatly impact vehicle performance and reliability. While generic options may seem appealing due to their lower cost, OEM wiring harnesses offer superior quality and long-term benefits that are hard to overlook.
Wiring harnesses play a crucial role in various types of vehicles. They ensure that electrical systems function smoothly, making them essential components in modern automotive design.
1. Internal Combustion Engine (ICE) Vehicles
a. ICE vehicles rely heavily on wiring harnesses for their electrical systems. These harnesses connect components like the engine control unit (ECU) and sensors, ensuring optimal performance.
2. Electric and Hybrid Vehicles
a. In electric and hybrid vehicles, wiring harnesses are even more critical. They manage high-voltage systems and integrate various electronic components, from battery management systems to regenerative braking.
3. Commercial Vehicles and Heavy-Duty Applications
a. Commercial vehicles, such as trucks and buses, utilize robust wiring harnesses. These harnesses handle complex electrical systems required for heavy-duty applications, including towing and cargo management.
● Engine Harnesses
○ Engine harnesses connect various engine components, facilitating communication between sensors and the ECU. This ensures efficient engine operation and performance monitoring.
● Lighting Systems
○ Wiring harnesses are vital for vehicle lighting systems. They connect headlights, taillights, and interior lights, ensuring safety and visibility on the road.
● Comfort Features
○ Many comfort features, like power windows and seat adjustments, rely on wiring harnesses. These harnesses provide the necessary electrical connections for these conveniences.
● ExcavatorsExcavators use specialized wiring harnesses to manage their hydraulic systems and electronic controls. These harnesses enable operators to control various functions efficiently, enhancing productivity on site.
Vehicle Type | Key Applications |
Internal Combustion Engine (ICE) | Engine control, sensors, lighting systems |
Electric and Hybrid Vehicles | Battery management, regenerative braking, ECUs |
Commercial Vehicles | Heavy-duty systems, towing, cargo management |
Excavators | Hydraulic systems, electronic controls |
Wiring harnesses are integral to the functionality of various vehicles. They ensure that all electrical components work together seamlessly, enhancing both performance and safety.
Understanding wiring harnesses is vital for vehicle owners.
They play a key role in vehicle maintenance and repairs.
A well-functioning wiring harness enhances performance and safety.
Choosing the right wiring harness can prevent future issues.
In summary, we explored their types, applications, and importance.
A: The average lifespan of a wiring harness is typically 10 to 15 years, depending on environmental factors and vehicle usage.
A: Signs include frayed wires, electrical malfunctions, and warning lights on the dashboard.
A: While DIY is possible, professional installation is recommended for complex systems to ensure safety and reliability.
A: Replacement costs can range from $100 to $1,000, depending on the vehicle and harness complexity.
A: Look for durable materials, proper insulation, compatibility with your vehicle, and certifications from reputable manufacturers.
